Alert sources and intake rules — set it up like the demo

Wire CloudWatch, Azure Monitor and webhook senders to the intake, prove the path with a test alert, and set the rules for alerts that name no service or keep coming back.

How-to · Updated 2026-10-24 · Describes release 0.1.164

Goal

Deliver a labelled alert from its real source, read its receipt, and follow it into the correct incident. A practical setup uses one SNS topic for CloudWatch alarms and a generic webhook for controlled application signals. Configure recovery delivery as well as firing delivery.

Prerequisites

Procedure

  1. Open Settings · Data in → Alert intake & tokens → Webhook ingest. Prefer the X-Webhook-Token header. Use the path-token form only where the source needs it, such as SNS or an Azure action group. If minting a replacement, use Mint webhook token → Mint token and update every sender together: the old token stops immediately. Never put the value into a ticket or recording. You should see the token once and the source's endpoint recipe.

    API: the ingest endpoint is /webhook/<source>/<workspace-slug> with the header token, or /webhook/<source>/<workspace-slug>/<token> for the path form. Token management is POST /api/aiops/{tid}/webhook-token — pillars.manage; a personal access token needs the admin scope for it, and a read or write token is refused with 403. The path form suits SNS and Azure action groups, which cannot send a header: the platform reads Authorization: Bearer, then X-Webhook-Token, then the path segment.

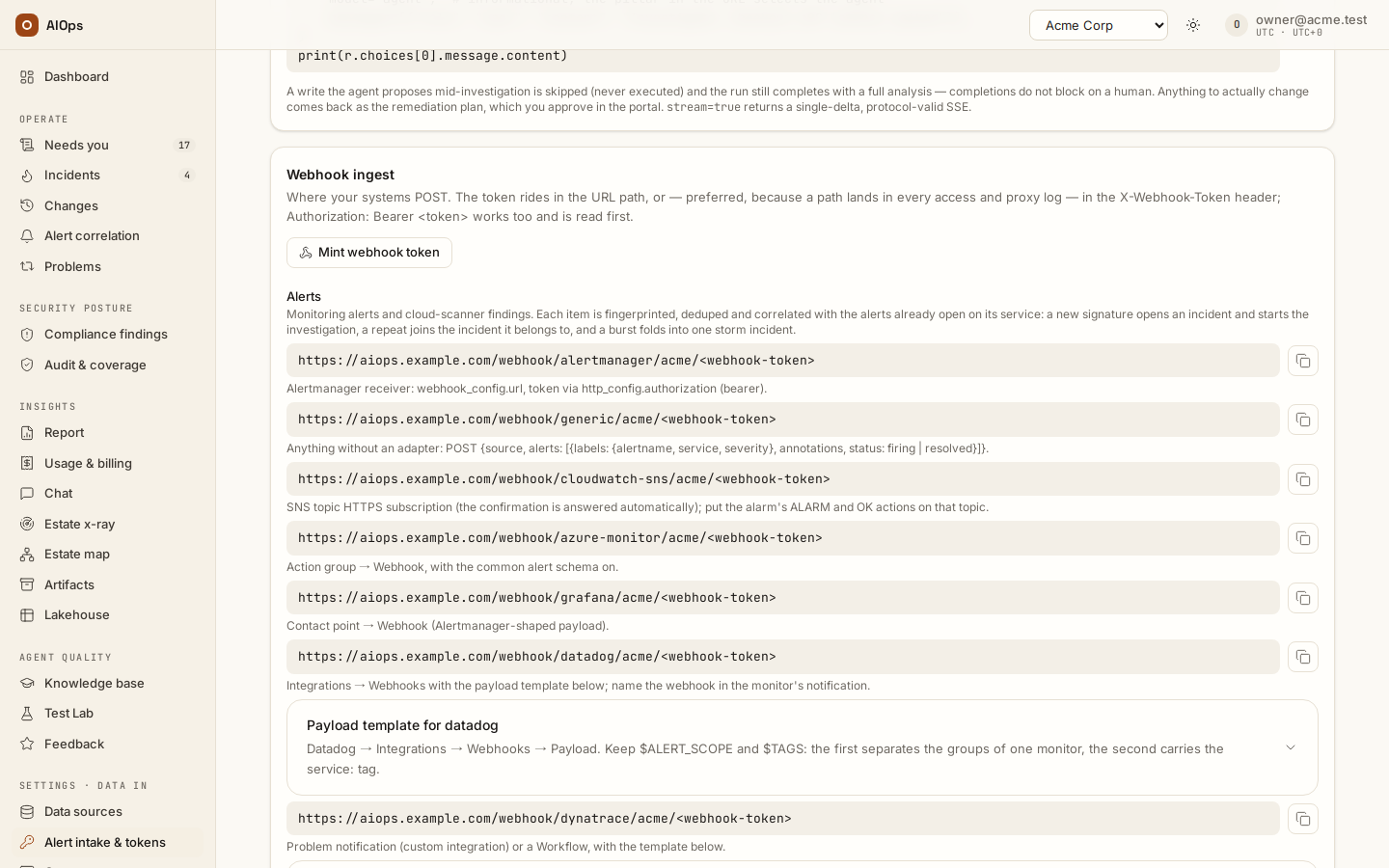

Alert intake & tokens → Webhook ingest: the card prefers the X-Webhook-Token header to a token in the URL path; Mint webhook token; then one endpoint per alert source, shown in the path-token form, with a setup hint under each and the Datadog payload template folded under its endpoint.
Alert intake & tokens → Webhook ingest: the card prefers the X-Webhook-Token header to a token in the URL path; Mint webhook token; then one endpoint per alert source, shown in the path-token form, with a setup hint under each and the Datadog payload template folded under its endpoint.

  1. In Send a test alert, choose the source and Create test alert. Save Sample payload as validation.json; set AIOPS_URL (this platform's address) and WEBHOOK_TOKEN, the two placeholders in curl (fill the two placeholders), then run that command from the folder that holds the file, in the approved environment. You should see a Receipt identifying the delivered sample and its resulting incident or held state.

    API: POST /api/aiops/{tid}/intake/validations with {"source": "alertmanager"} (or generic, datadog, dynatrace) — pillars.manage. Its 201 response carries what the card shows: endpoint, sample_payload (save it as validation.json) and curl, plus the id and a correlation_id; the sample expires after 24 hours. Receipt reads use GET /api/aiops/{tid}/intake/validations/{id} — incidents.view; that response repeats endpoint, sample_payload and curl and adds receipt_state, incident_id and investigation_phase. Creating the sample and delivering it are distinct steps.

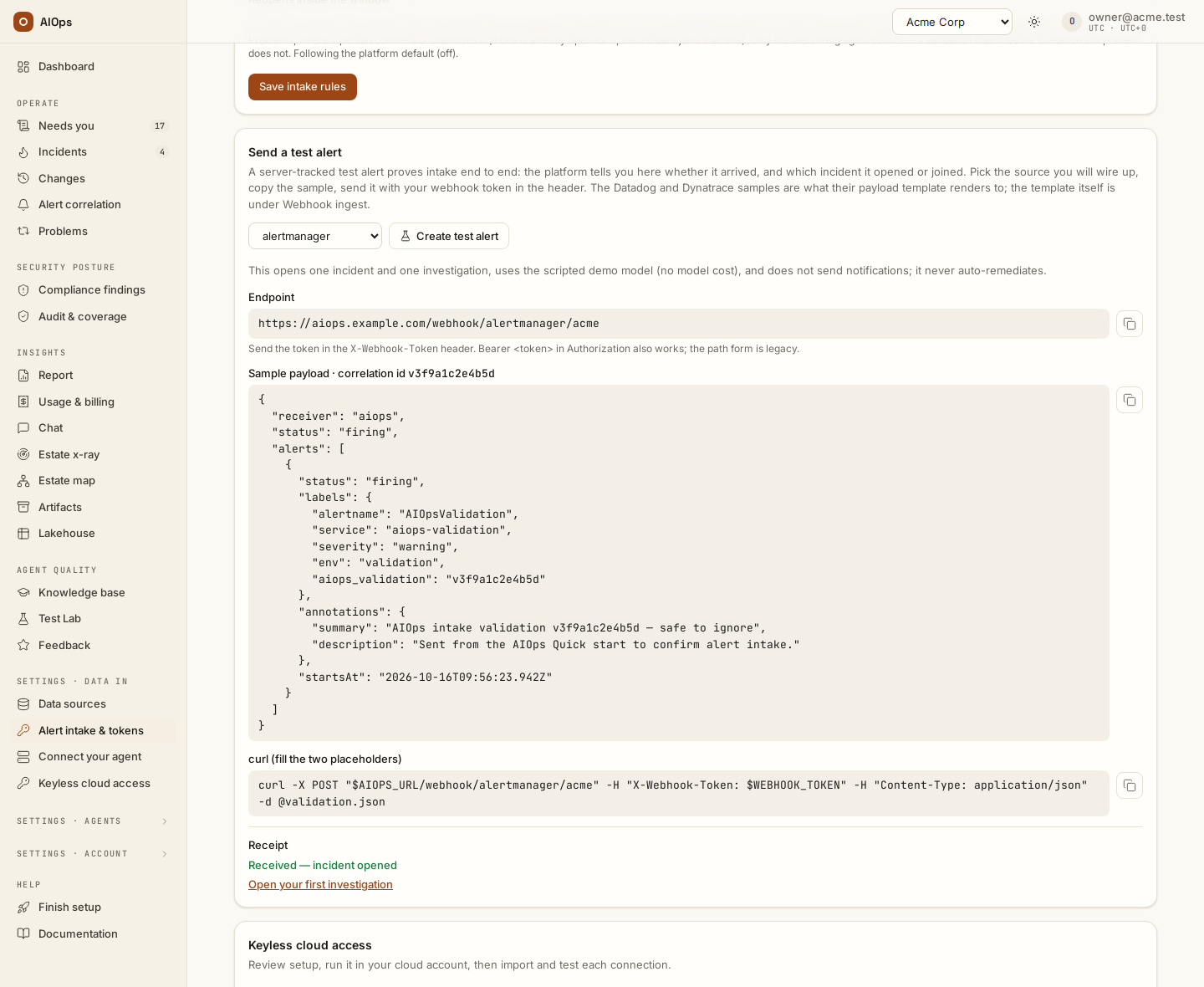

Alert intake & tokens → Send a test alert after Create test alert: the endpoint and the note to send the token in the X-Webhook-Token header, the sample payload with its correlation id, the curl command with its two placeholders, and the Receipt — Received, incident opened.
Alert intake & tokens → Send a test alert after Create test alert: the endpoint and the note to send the token in the X-Webhook-Token header, the sample payload with its correlation id, the curl command with its two placeholders, and the Receipt — Received, incident opened.

  1. For CloudWatch, connect an SNS HTTPS subscription to the workspace's CloudWatch intake endpoint. Configure the alarm's ALARM and OK actions to publish to the topic. Do not add an INSUFFICIENT_DATA action as a recovery substitute. Give the alarm description a stable service=orders-api hint and the intended severity=warning, error or info. A severity metric dimension takes precedence over the description; without a severity declaration the source defaults to critical. Use severity=warning on your first alarms: a critical alarm opens a P1 incident, and under the default Derived change class policy a P1's fix is an emergency change (L3) that needs two different approvers. A warning opens a P3, raised one level when its blast radius reaches two or more services and one more for a mission-critical resource. An alarm with no service= in its description and no ServiceName, service or resource dimension (billing and account-wide metrics, for example) names no service: with the triage queue on (the default since 0.1.133) it opens its own held unmapped=<fingerprint> incident under Needs you → Triage, with no analysis, ticket or page until someone chooses Analyse; mapping its source (step 5) gives the later alarms from that source a service. The commands for the topic, the subscription and anomaly-detection alarms, a CloudFormation starter and a forced test are in the No alarms yet? Start with the cloud's own anomaly detection guide of the delivered documentation. You should see the confirmation/delivery receipt and canonical service, severity, account and region on the signal.

    API: /webhook/cloudwatch-sns/<workspace-slug>[/<token>] — source webhook authentication. SNS/alarm configuration is performed in the source account under its own authorized role.

  2. For Azure Monitor, enable the common alert schema and point the action group at Azure Monitor intake. Severity follows Sev0–Sev4; a target resource supplies the service identity, while a workspace/subscription-scoped rule can retain its own key. For Datadog, Dynatrace, Alertmanager and Grafana, use the source-specific setup and paste-in template in Alerts from your observability platform. You should see the source's own identity and severity mapped into the receipt rather than a guessed service.

    API: /webhook/azure-monitor/<workspace-slug>[/<token>], or the corresponding source endpoint. Owner-defined label_map / severity_map use PATCH /api/aiops/{tid} settings — members.manage.

  3. Decide how unknown service identity is handled under Intake rules. The triage queue is on by default since 0.1.133 (aiops_unmapped_triage, Send alerts that name no service to the triage queue); with it on, an alert naming no service is held under Needs you → Triage. Review it, choose Analyse when appropriate, or, on the incident's Unidentified service — map this source card, choose Use <label> (<value>) as the service so the next signal from that source that names no service takes that label as its service. Removing a mapping affects future intake; it does not rewrite history. You should see the held reason, the mapping, and the next signal's actual key.

    API: PATCH /api/aiops/{tid}/guardrails — members.manage; source mappings use source_service_labels. Mapping a held case uses POST /api/aiops/{tid}/incidents/{id}/map-source with {"label": "<label>"} — members.manage. Analyse is POST /api/aiops/{tid}/incidents/{id}/reinvestigate with {} — incidents.act; it answers 409 while a run of the incident is already in flight.

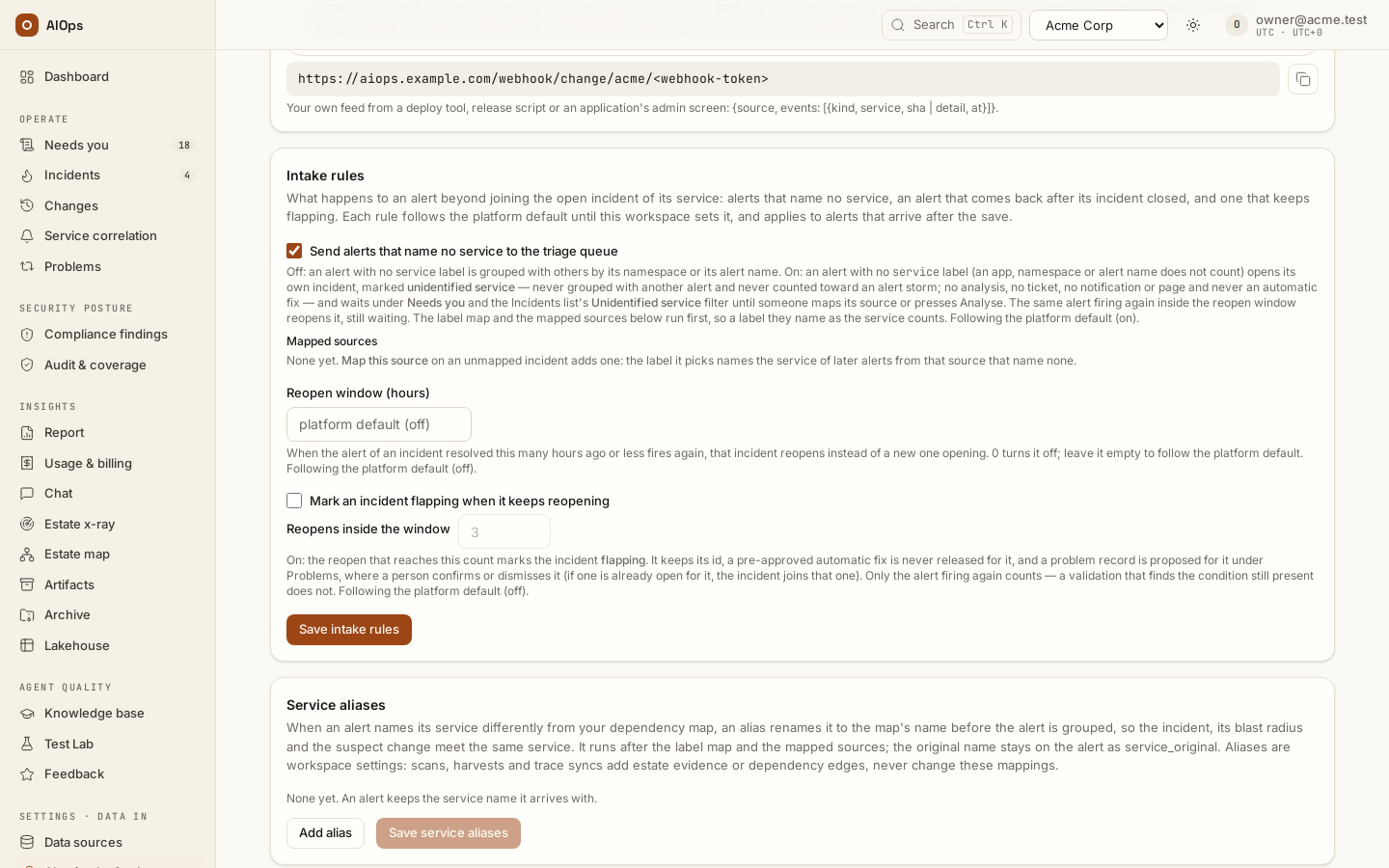

Alert intake & tokens → Intake rules: the triage-queue switch and its mapped sources, the reopen window and the flapping threshold; Save intake rules applies them to alerts that arrive after the save.
Alert intake & tokens → Intake rules: the triage-queue switch and its mapped sources, the reopen window and the flapping threshold; Save intake rules applies them to alerts that arrive after the save.

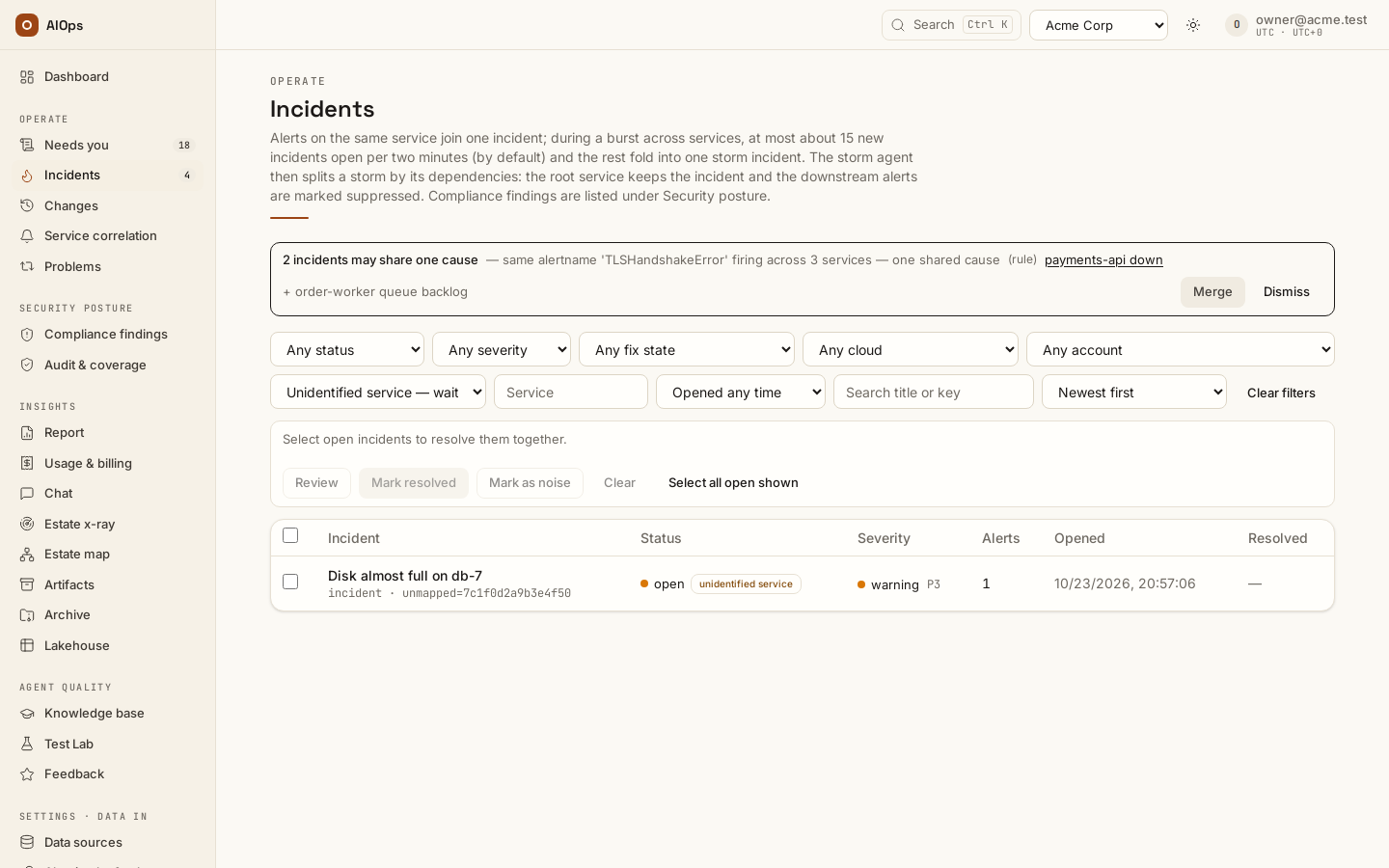

Incidents filtered to the triage queue: an alert that named no service is held open and marked unidentified service until someone analyses it or maps its source.
Incidents filtered to the triage queue: an alert that named no service is held open and marked unidentified service until someone analyses it or maps its source.

  1. Set Reopen window (hours) and, if needed, Mark an incident flapping when it keeps reopening. A returning signal inside the window can reopen the same incident, including a noise-closed one. At the configured threshold, read the flapping row/chip and the proposed Problem. Confirm and Dismiss are separate human decisions. You should see the original identity and actual reopen count; an Automatic fix blocked receipt exists only when eligible automation would otherwise have tried to run.

    API: PATCH /api/aiops/{tid}/guardrails with reopen_window_h and flap_threshold — members.manage. The separate aiops_require_identity_labels gate is an API-only workspace setting; it has no checkbox.

  2. Read the result in L1 Signals received, L2 Service correlation & noise suppression (open How these were grouped), and L3 Incident creation & routing. Active duplicate fingerprints are counted without adding a new alert row. The correlation key uses service; an alert with no service opens its own unidentified service incident while the triage queue is on (the default), and only with the queue off falls back to namespace, then alert name, then fingerprint; this is not a sliding correlation-time window. Grouping services that fail together by their dependencies is a separate rule. You should see the actual receipt counts and the corresponding incident history.

    API: incident/alert reads require incidents.view. A rate-limited batch receives 429 with Retry-After; respect that response rather than splitting/retrying aggressively.

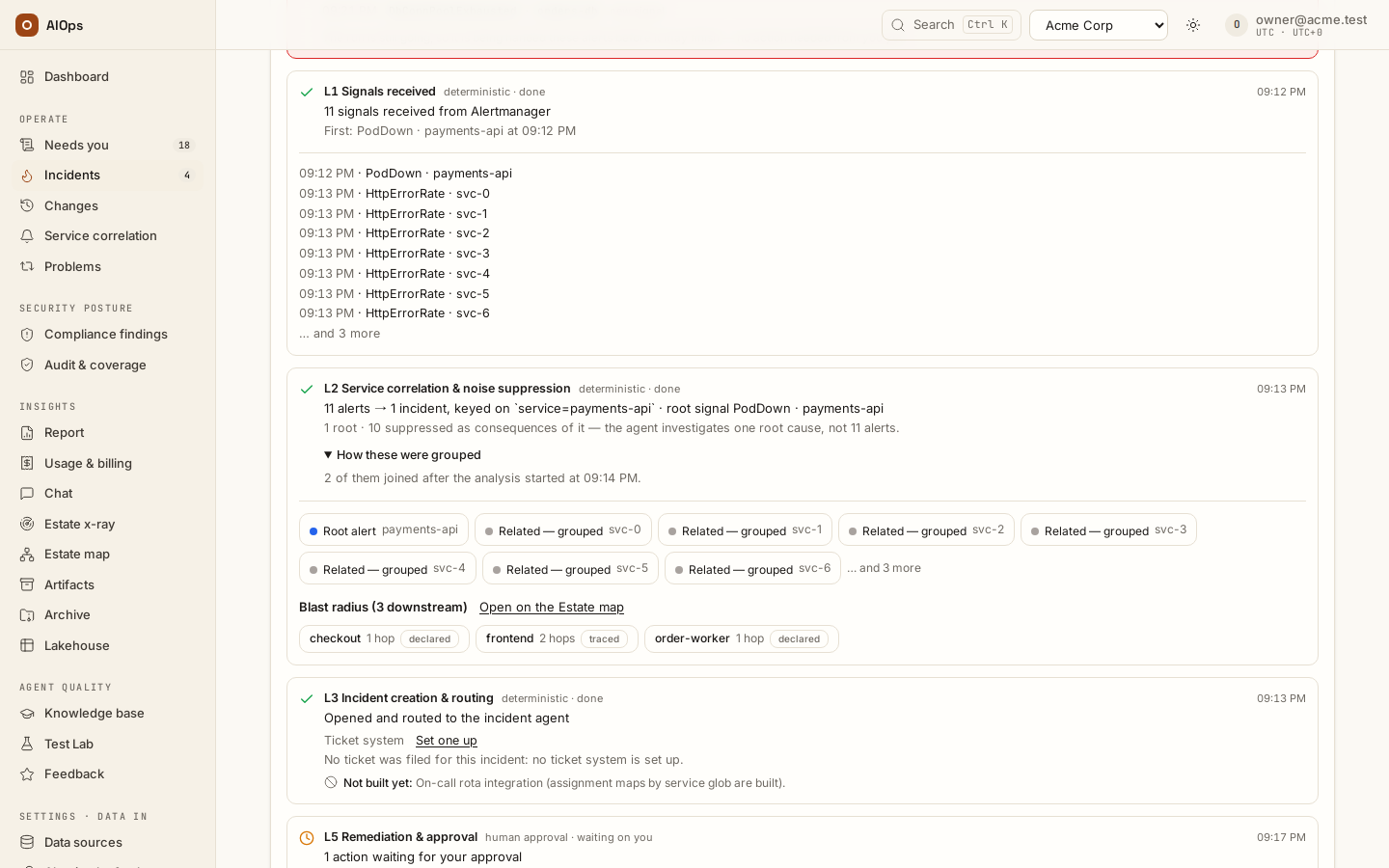

Incident page, L1, L2 and L3 opened: each signal with its time, name and service; 11 alerts grouped into 1 incident on service=payments-api, How these were grouped opened, the chips with the root alert first and the blast radius; and the incident opened and routed to the incident agent, with no ticket filed.
Incident page, L1, L2 and L3 opened: each signal with its time, name and service; 11 alerts grouped into 1 incident on service=payments-api, How these were grouped opened, the chips with the root alert first and the blast radius; and the incident opened and routed to the incident agent, with no ticket filed.

  1. Send the source's recovery and verify the result. A clear can close an incident that is open or investigating. After escalation it can record Condition cleared while the incident still needs a person to close it. Finish only your test's cleanup. You should see the recovery receipt and the resulting recorded state; a source clear does not close every incident.

  2. Read the incident’s Spend after the work actually recorded. Triage & RCA (L4·L7) separates automatic analysis from a person’s re-run; Validation (L6) separates AI runs, failed AI runs and free checks. Returning alerts can add occurrence rows to the same incident. You should see the actual amounts and counts for the recorded occurrences. An incident with no recorded investigation or countable check has no Spend card; do not start a run just to populate it.

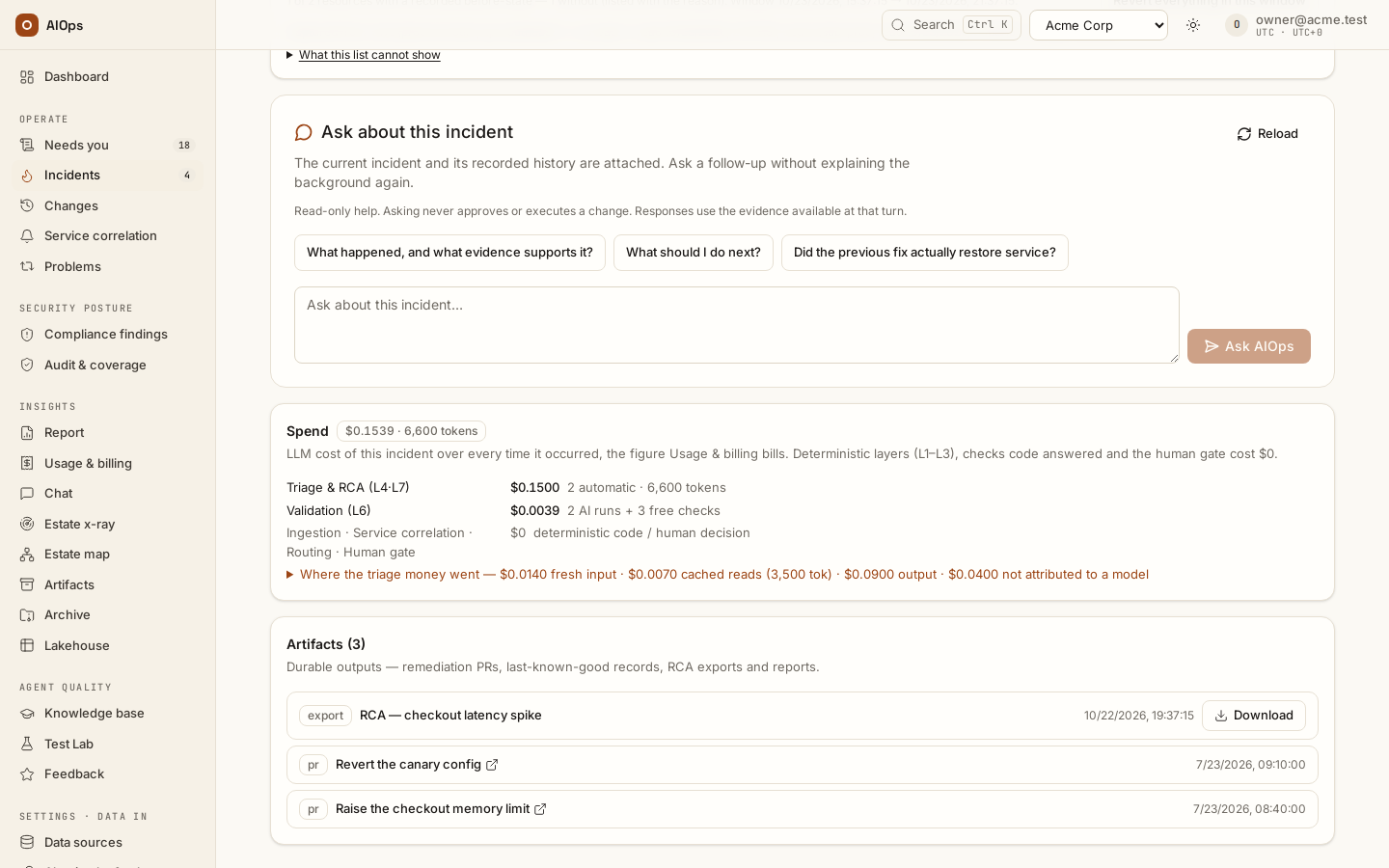

Incident page, Spend card: Triage & RCA (L4·L7) and Validation (L6) summed from the recorded occurrences; the deterministic layers and the human gate cost $0.
Incident page, Spend card: Triage & RCA (L4·L7) and Validation (L6) summed from the recorded occurrences; the deterministic layers and the human gate cost $0.

Verify

Keep the source timestamp, receipt counts, canonical labels, incident identity and recovery result together. A sample's receipt proves its path; it does not establish that all production alarms are wired. A token that travelled in a URL before 0.1.120 should be replaced even though newer pages mask it. The path form itself stays the supported way to authenticate SNS subscriptions and Azure action groups.

Create the webhook token

Read this before you click. Minting a webhook token immediately breaks every configured alert source in the tenant. The previous token stops working the moment the new one is issued; there is no overlap window and no grace period, and the only symptom is 401 invalid webhook credentials on every incoming alert. Do this in a maintenance window, with every alert source open and ready to update, and with someone watching the Service correlation page.

Requires pillars.manage. Without it the Mint webhook token button is not rendered; the card says who can mint the token instead.

  1. Open Alert intake & tokens.
  2. Select Mint webhook token on the Webhook ingest card. The dialog explains that the previous token stops working immediately.
  3. Confirm with Mint token.
  4. Copy the value from the New webhook token card. Only its SHA-256 hash is stored, so this is your one chance.
  5. Update every alert source, then fire a test alert per source (Send your first alert).

You should see a New webhook token card at the top of the page, and — after step 5 — a new row per source on the Service correlation page.

For the rest of the page session the Webhook ingest card substitutes the freshly minted token into every ready-made URL, so you can copy each source's URL complete. Reload the page and the token is replaced by <webhook-token> again, because it is not stored.

Who else can rotate this token matters: platform staff can mint it for you too, which produces exactly the same breakage. Agree in advance who owns the rotation.

Troubleshooting

Symptom Check Next step
401 Token rotation time and sender revision Update the sender through the secret channel; avoid repeated token mints
429 Entire-batch refusal and Retry-After Wait for the indicated interval; keep the original receipt
Held for triage Missing service or identity, and the effective intake rules Review, Analyse or map the source; do not fabricate identity
Alarm clears in CloudWatch but no recovery arrives OK action and SNS delivery Repair recovery wiring and verify its own receipt
Priority seems too high Actual canonical severity and criticality Correct the source or its mapping for later alerts; count alone does not set priority
The alert arrived but no analysis started The incident's heading and its Timeline: Held for triage — … means intake held the alert, Run failed — … means the run was refused or failed, AI budget exhausted means the per-incident limit is spent Held for the triage queue (no service label while Send alerts that name no service to the triage queue is on, the default): choose Analyse, or map the source. Held for missing identity labels (aiops_require_identity_labels on, and neither a service-like label nor an alertname): add the label at the source. Refused at start: Pause all agents is on, the daily or monthly limit is reached (Settings · Agents → Guardrails & cost), or the platform licence is expired or invalid (platform staff install a current one); clear the cause, then Re-analyse. pillar disabled or unconfigured: tick Enabled for the Incident agent under Settings · Agents → Agent behaviour. A provider error: A run failed with a model provider error. Per-incident limit: Continue analysis (+$5) on the incident. An alert that joins an incident already open starts no second run

Webhook reference · External observability · Dashboard, Operate and alerts · Incidents · Notifications setup.

Next steps
